Products

HomeProducts

  • All
  • Consumables
  • Densified Wood
  • Paper & Fabric Bakerlite
  • Phenolic Resin
  • Plastic
  • Thermal
  • Type X Meter Panel
  • VBS Busbar Supports

Densified Wood (Permalli)

Densified Wood (Permalli)

Based on the use of selected beech veneers in combination with synthetic resin. Lamination is carried out at high surface pressure and elevated temperature. Grade KP20228 is manufactured with veneers compressed alternately at 90°, which results in a material with uniform strength and stability suitable for a wide range of applications, which includes support for bus bars, cables, switches and circuit breakers.



Type X Meter Panel (Insulpanel)

Type X Meter Panel (Insulpanel)

A Phenolic resin impregnated paper base laminated sheet manufactured specially to Australian Std. AS 1795 – 1983(Type X) for Electrical Insulation purpose. This is asbestos free material and can be easily sawn, drilled and tapped without any undue chipping, splitting, cracking or delamination. These panels have good electrical properties and can be used in switchboard panels, meter boards, bus bar supports and arc chutes

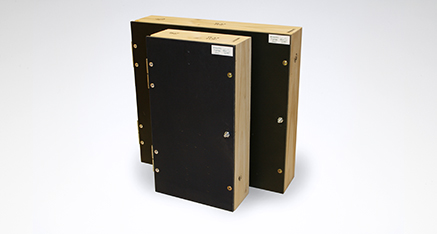

White Ant Box Meter Frames: Pre-drilled

White Ant Box Meter Frames: Pre-drilled

White Ant Meter Frames are a great alternative to metal meter boxes. Hand crafted and Australian made



Bakelite Paper Based Industrial Laminate

Bakelite Paper Based Industrial Laminate

These are paper based laminates in various specification and grades and have excellent mechanical properties. The laminates can withstand low tensions, have very low water absorption properties, suitable for high voltage electrical applications and have the capacity to be used for small parts



Bakelite Fabric Based Industrial Laminate

Bakelite Fabric Based Industrial Laminate

These are fabric based laminates in various specification and grades and have excellent mechanical properties. The laminates can withstand low tensions, have very low water absorption properties, suitable for high voltage electrical applications and have the capacity to be used for small parts



3240 Epoxy Phenolic Glass Cloth Laminate

3240 Epoxy Phenolic Glass Cloth Laminate

This product exhibits high mechanical and dielectrical properties. It can be used as insulating construction parts in electrical machines and apparatus. It can also be used in a humid environment and in transformer oil

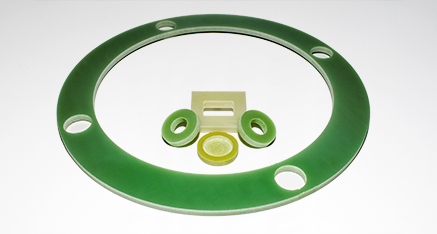

NEMA G-10/11 Fiberglass Epoxy Laminate

NEMA G-10/11 Fiberglass Epoxy Laminate

This glass-epoxy laminate is specified for its extremely high strength and high dimensional stability over temperature. G-11 is used for terminal boards, high humidity applications, electrical and electronic test equipment and electric rotor insulation. G-11 is difficult to cut or machine and may require special equipment. G-10 is slightly Stronger while G-11 is a better insulator and can withstand higher temperature G-10/11 and similar fibreglass reinforced thermosets are sometimes known as garolite



SG-200/GPO-1

SG-200/GPO-1

High temperature and high strength laminate. Laminate is a material filled, continuous strand fibre-glass mat reinforced thermoset unsaturated polyester material SG200 offers much higher mechanical strength with temperature ratings of up to 210°C, it provides numerous high performance features and benefits such as flexibility and excellent dielectric strength at elevated temperature. It also exhibits the highest UL temperature index in the industry for flexible glass-reinforced polyester



GPO-3

GPO-3

Resistance Laminate is a material-filled, continuous strand fibre-glass mat reinforced thermoset unsaturated polyester material. It has been expressly developed to meet the arc, track, and flame resistance requirements of the National Electric Manufacturers Association (NEMA) GPO 3 industrial laminate specification (L1-1)



Standoff DMC insulators

Standoff DMC insulators

Available in drum, hexagonal, full hexagonal and cylindrical. Inserts are brass double stepped (not pressed)

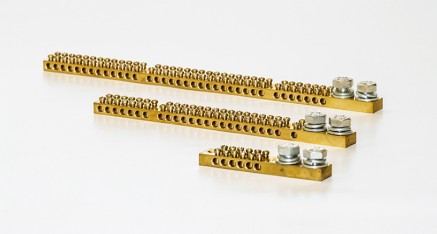

Earth/Neutral Brass bars

Earth/Neutral Brass bars

Our solid brass earth/neutral bars come with M10 Hex head screws and M5 threaded fixing holes. All bars are horizontally numbered and are supplied with fixing screws. Capacity-165 Amps



Lift Off Hinges

Lift Off Hinges

Hinges used within power boxes for domestic and industrial use.



NAD-11 Sheets

NAD-11 Sheets

NAD-11 is an asbestos-free cement board with excellent electrical properties. A high density cement board reienforced with inorganic fibers, NAD-11 is suitable for application requiring continuous operation in temperatures up to 500°C (940°F)

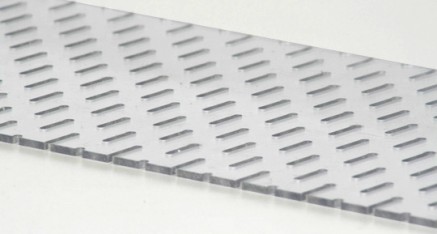

Acrylic | PVC | Polycarb Sheeting

Acrylic | PVC | Polycarb Sheeting

With an wide range of machining capacity, Insulcut can provide Acrylic, PVC and Polycarb Sheeting to meet industrial or commercial needs of your project.

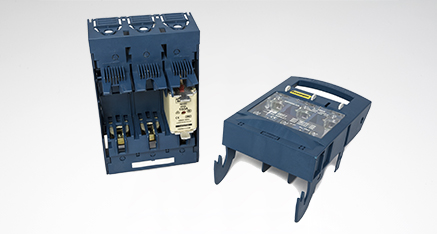

LPD

LPD's (Rat Traps)

Eaton's Bussmann series NH horizontal fuse switch disconnections are specifically designed to be used with NH fuse links. All energised metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation. The EBV series NH gear are provided complete with the clamps (i.e. screws/V-terminals/2V-terminals) and cables for shrouds for cables termination.

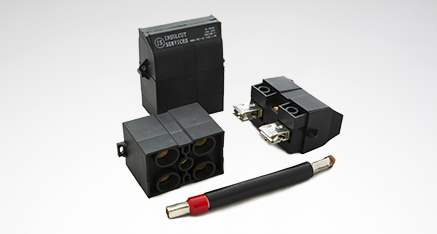

House Service Fuse Holders

House Service Fuse Holders

Cooper Bussmann House Service fuse base is suitable to use with BS fuse link which are 22mm and 30mm Diameter x 57mm long

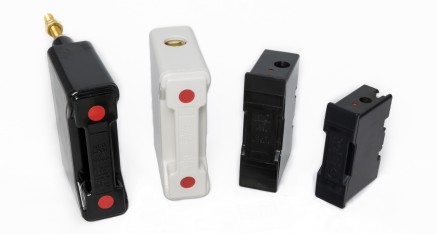

Red Spot & Safe Clip Holders

Red Spot & Safe Clip Holders

A Range of CSA certified IP20 finger-safe fuse holders for BS88 HRC industrial fuses in rating up to 400A.

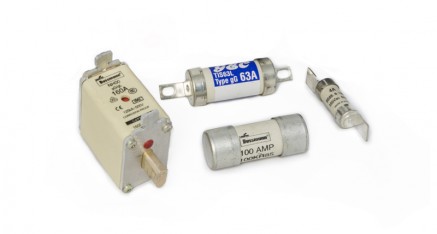

Fuses

Fuses

Offer a extensive range of fuses to BS88 Standards; including: Clip In, Offset Bolted Tags and Centre Bolted Tags; 2 to 1250A; 415, 550 and 660V rated.

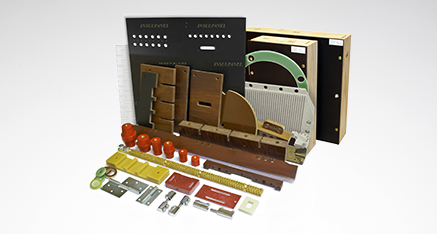

Other Products

Other Products

We also sell a wide range of other products that are available upon enquiry. These include:

• Promina
• Promat H
• Nad 11
• Superlux
• Superwool

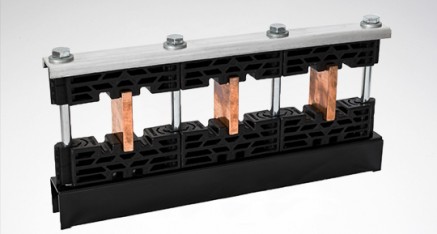

VBS Busbar Supports

VBS Busbar Supports
