NEMA G-10/G-11 Fiberglass Epoxy Laminate Sheets

Grade:
G10/G11 Fiber Reinforced Composite

Colour:
Sheets are supplied in green

Thickness:
0.80mm to 35mm

Subcategory:
Epoxy; Filled/Reinforced Thermoset; Polymer; Thermoset

Description:

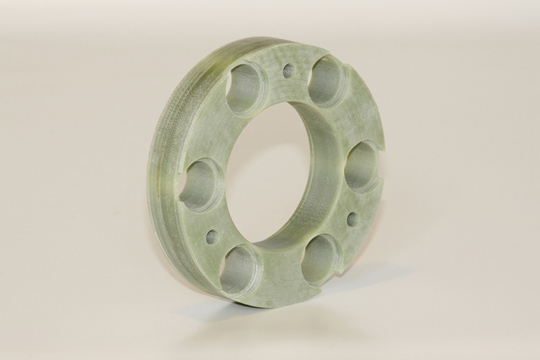

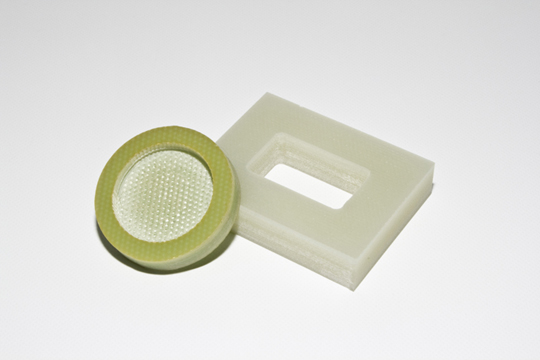

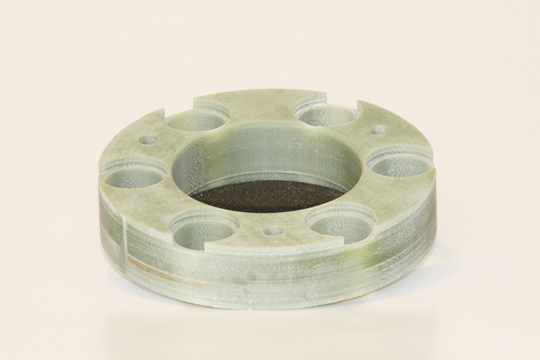

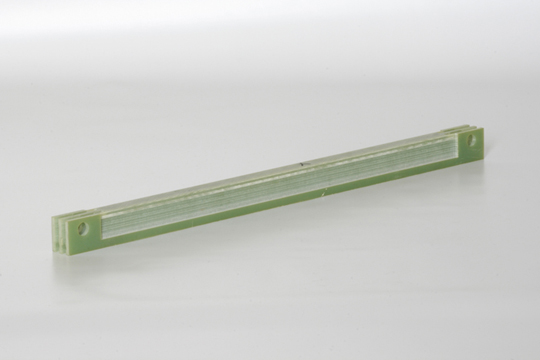

This glass-epoxy laminate is specified for its extremely high strength and high dimensional stability over temperature. G-11 is used for terminal boards, high humidity applications, electrical and electronic test equipment and electric rotor insulation. G-11 is difficult to cut or machine and may require special equipment.
G-10 is slightly Stronger while G-11 is a better insulator and can withstand higher temperature G-11 and similar fibreglass reinforced thermosets are sometimes known as Garolite.

G-10

Properties Metric English Comments
PHYSICAL
Density 1.8 g/cc 0.065lb/in² ASTM D798
Water Absorption 0.10% 0.10% 24 hrs; ASTM D570
MECHANICAL
Hardness, Rockwell M 110 110 ASTM D785
Tensile Strength @ Break 262 MPa 38,000 psi Crosswise; ASTM D638
Tensile Strength @ Break 310 MPa 45,000 psi Lengthwise; ASTM D638
Flexural Modulus 16.5 GPa 2,400 ksi Crosswise; ASTM D790
Flexural Modulus 18.6 GPa 2,700 ksi Lengthwise; ASTM D790
Flexural Strength 448 MPa 65,000 psi Crosswise; ASTM D790
Flexural Strength 517 MPa 75,000 psi Lengthwise; ASTM D790
Compression Strength 448 MPa 65,000 psi ASTM D695
Izod impact, Notched 6.41 J/cm 12 ft-lb/in Lengthwise; ASTM D256
Izod impact, Notched 7.47 J/cm 14 ft-lb/in Crosswise; ASTM D256
ELECTRICAL
Dielectric Constant 5 5 1 MHz; ASTM D150
Dielectric Strength 31.5 kV/mm 800 V/mil Short Time; 1/8 inch; ASTM D149
Dissipation Factor 0.019 0.019 1 MHz; ASTM D150
Arc Resistance 100 sec 100 sec ASTM D495
Thermal
CTE, linear 68ºF 9.9 µm/m-ºC 5.5 µin/in-ºF Lengthwise; ASTM D696
CTE, linear 20ºC Transverse to Flow 11.9 µm/m-ºC 6.61 µin/in-ºF Crosswise; ASTM D696
Thermal Conductivity 0.288 W/m-K 2 BTU-in/hr-ft²-ºF ASTM C177
Maximum Service Temperature, Air 140ºC 284ºF
Flammability, UL94 HB HB

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use.

G-11

Properties Metric English Comments
Density 1.8 g/cc 0.065lb/in3 ASTM D798
Water Absorption 0.20% 0.20% 24 hrs; ASTM D570
MECHANICAL
Hardness, Rockwell M 112 112 ASTM D785
Tensile Strength @ Break 255 MPa 37,000 psi Crosswise; ASTM D638
Tensile Strength @ Break 295 MPa 43,000 psi Lengthwise; ASTM D638
Flexural Modulus 18.6 GPa 2,700 ksi Crosswise; ASTM D790
Flexural Modulus 20.7 GPa 3,000 ksi Lengthwise; ASTM D790
Flexural Strength 483 MPa 70,000 psi Crosswise; ASTM D790
Flexural Strength 552 MPa 80,000 psi Lengthwise; ASTM D790
Compression Strength 434 MPa 63,000 psi ASTM D695
Izod impact, Notched 6.41 J/cm 12 ft-lb/in Lengthwise; ASTM D256
Izod impact, Notched 4.81 J/cm 9 ft-lb/in Crosswise; ASTM D256
ELECTRICAL
Dielectric Constant 4.5 4.5 1 MHz; ASTM D150
Dielectric Strength 35.4 kV/mm 900 V/mil Short Time; 1/8 inch; ASTM D149
Dissipation Factor 0.02 0.02 1 MHz; ASTM D150
Arc Resistance 120 sec 120 sec ASTM D495
Thermal
CTE, linear 68ºF 13 µm/m-ºC 7.2 µin/in-ºF Lengthwise; ASTM D696
CTE, linear 20ºC Transverse to Flow 15 µm/m-ºC 7.2 µin/in-ºF Crosswise; ASTM D696
Thermal Conductivity 0.288 W/m-K 2 BTU-in/hr-ft²-ºF ASTM C177
Maximum Service Temperature, Air 165ºC 329ºF
Flammability, UL94 HB HB

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use.
