P1 Paper Based Industrial Laminate

Grade:
P1 Paper Based Industrial Laminate

Colour:
Sheets are supplied in natural brown or black

Thickness:
0.80mm to 25.40mm

Tolerance:
Sheets are supplied as per tolerance specified in IS; 2036

Size:
Standard sheet size is 2440mm x 1220 mm

Description:

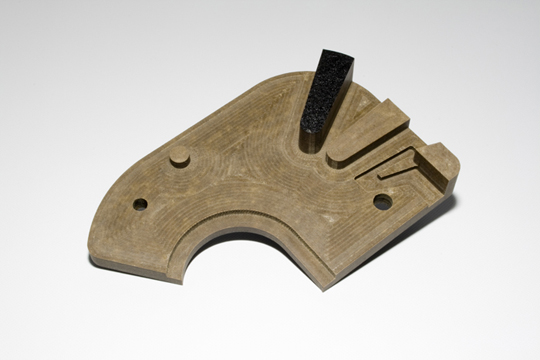

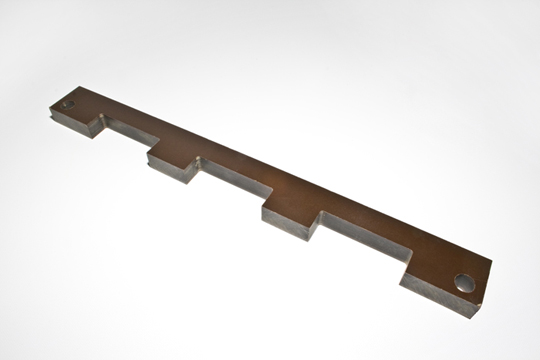

These are paper based laminates to specification as per IS;2036, GRADE P1, and have excellent mechanical properties and can withstand low tensions electrical applications under non humid atmosphere.

SPECIFICATIONS MET; BS:2572
GRADE:P1 NEMA:L1-1-1989 GRADEX DIN:7735 GRADE HP 2061

PROPERTIES UNITS AVERAGE TEST RESULTS VALUES AS PER IS;2036-1995
MECHANICAL
Tensile Strength Kgf/cm² 1050 (Mpa 103) 840 Min
Cross Breaking Strength Kgf/cm² 1650 (Mpa 162) 1350Min
Shear Strength Kgf/cm² 900 (Mpa 88) 775Min
Impact Strength (Edgewise) Kgf/cm² 6.2 (Mpa 1) 4.41 Min
Specific Gravity Gms/cc 1.38
Compression Strength Kgf/cm² 890 (Mpa 87) 840Min
ELECTRICAL
Electrical Strength
* Flatwise 3.2mrn thick Kv Withstood 10 Kv for 1 Min Not specified
Insulation Resistance after immersion is in water for period of 24 hours Meg Ohms 10Ω



WATER ABSORPTION (Specimen size- 100+/- 1mm)
**Thickness mm 0.8 3.2 12 25
**Average Test Results mg 45 70 130 200
**Maximum Values mg 188 252 312 376

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use.

P3 Paper Based Industrial Laminate

Grade:
P3 Paper Based Industrial Laminate

Colour:
Sheets are supplied in natural brown or biege

Thickness:
1.60mm to 32mm

Tolerance:
Sheets are supplied as per tolerance specified in IS; 2036

Size:
Standard sheet size is 2440mm x 1220 mm

Description:

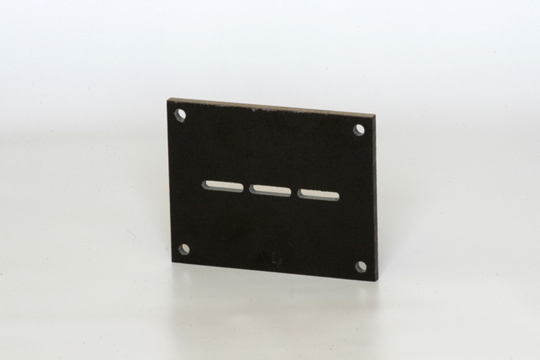

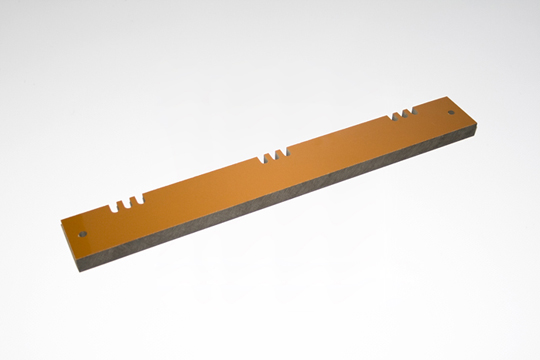

These are paper based laminates to specification as per IS;2036, GRADE P3, and have excellent electrical & adequate mechanical properties with very low water absorption. Suitable for high voltage electrical applications

SPECIFICATIONS MET; BS:2572
GRADE:P3 NEMA:L1-1-1989 GRADE XXX DIN:7735 GRADE HP 2061.6

PROPERTIES UNITS AVERAGE TEST RESULTS VALUES AS PER IS;2036-1995
MECHANICAL
Tensile Strength Kgf/cm² 600 (Mpa 58.8) 560 Min
Cross Breaking Strength Kgf/cm² 1150 (Mpa 112.7) 850 Min
Shear Strength Kgf/cm² 675 (Mpa 66) 625 Min
Impact Strength (Edgewise) Kgf/cm² 2.5 (Mpa 0.245) 2.07 Min
Specific Gravity Gms/cc 1.36
Compression Strength Kgf/cm² 895 (Mpa 87.7) 840 Min
ELECTRICAL
Electrical Strength
* Flatwise 3.2mm thickness Kv Withstood 21 Kv for 1 Min 21 Kv
* Edgewise 5.0mm thickness Kv Withstood 25 Kv for 1 Min 25 Kv
Insulation Resistance after immersionis in water for period of 24 hours Meg Ohms 1125Ω 1000Ω



WATER ABSORPTION (Specimen size- 100+/- 1mm)
**Thickness mm 0.8 3.2 12 25
**Average Test Results mg 18 26 13 50
**Maximum Values mg 25 32 18 70

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use.
