Description:
Full form of DMC is Dough Moulding Compound. In DMC compounding/formation, used Glass fibre is chop strand form. Materials consistence in DMC is Fiber chop 17%-18%, unsaturated Polyester Resin 28-30%, Filler material like ATH and CaCo3 40%-45%, others are catalysts and pigments. Glass Fiber and other chemicals are mixed in Sigma Blade mixing machine. Due to it’s dough properties, any shape of insulator and Busbar support can be made

drum-type

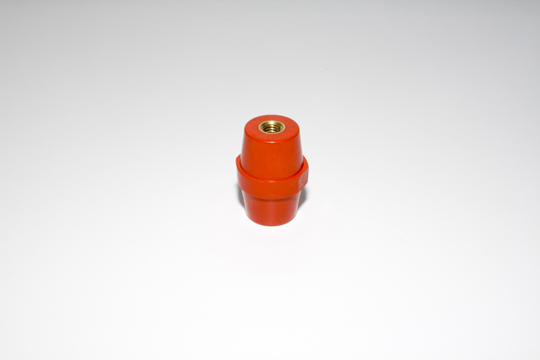

DRUM TYPE BUS BAR SUPPORTS
CAT. NO. (BRASS INSERT) DIMENSIONS in mm RATED kA
A B
D-835 M-8 35 26 20
D-851-E M-8 51 26 35
D-1051-E M-10 51 26 35
D-1060 M-10 60 32 35
D-1076-E M-10 76 33 35

hex-type

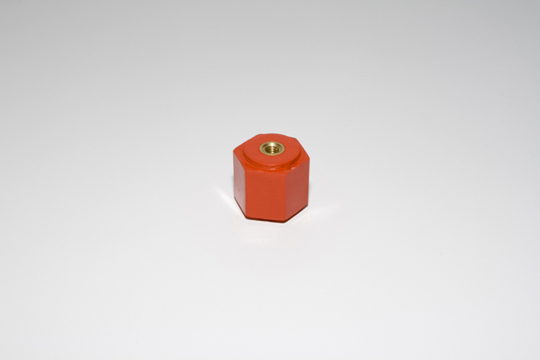

HEXAGONAL TYPE BUS BAR SUPPORTS
CAT. NO. (BRASS INSERT) DIMENSIONS in mm RATED kA
A B
H-625 M-6 25 15 20
H-630 M-6 30 25 20

full-hex-type

FULL HEXAGONAL TYPE BUS BAR SUPPORTS
CAT. NO. (BRASS INSERT) DIMENSIONS in mm RATED kA
A B
25HH-625 M-6 25 25 20

cyl-type

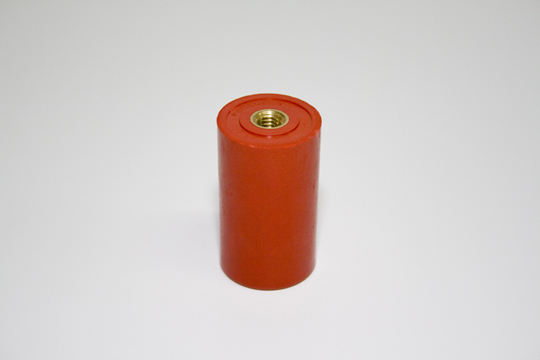

CYLINDRICAL TYPE BUS BAR SUPPORTS
CAT. NO. (BRASS INSERT) DIMENSIONS in mm RATED kA
A B
CY-2634 M-6 34 26 15
CY-3051 M-8 51 30 20
CY-3076 M-10 76 30 20

PROPERTIES UNITS TEST METHODS VALUES
(ASTM) SMC DMC EPOXY
PHYSICAL
Specific Gravity D-792 1.7 1.9 1.6 – 2.0
Glass Content % N.A. 25 15 –
Water Absorption (24hr) % D-570 0.2 0.15 0.04 – 0.1
MECHANICAL
Tensile Strength Kgf/Cm² D-638 700 400 750 – 400
Flexural Strength Kgf/Cm² D-790 1,550 900 800
Compressive Strength Kgf/Cm² D-695 1,800 1,500 1,600
Impact Strength Izod J/m D-265 600 250 –
ELECTRICAL
Dielectric Strength Kv/mm D-149 12 10 13
Tracking Index Volts BS-5901 +600 +600 +600
ARC Resistance Secs D-495 +180 +180 +180
FLAMMABILITY Self Extinguishing
