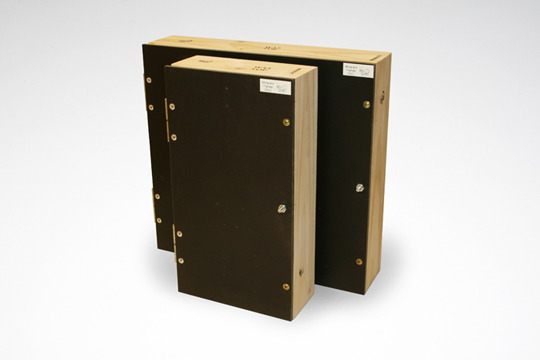

White Ant Meter Frames are a great alternative to metal meter boxes. Hand crafted and Australian made.

The White Ant Meter boxes are made from Insulpanel “Type X” switch panel, fire-retardant “Fibre Cement” back panel, Australian Plantation pine frame and Nefalit 11 insulation.

Advantages:
• Wooden frames mean no earthing is required
• The panels are pre-drilled for service fuses and neutral link
• Fully insulated sides and back

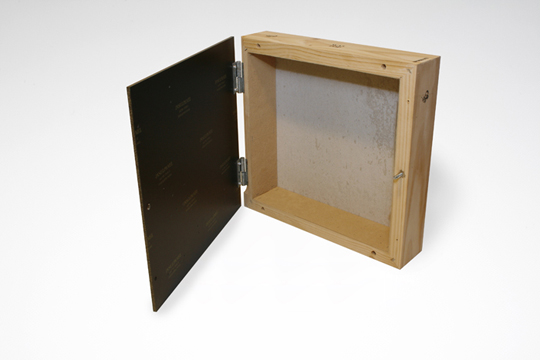

• Removable front hinged panel
• Australian made

The three sizes available are off the shelf. Custom frames and panels can be ordered

MODEL DIMENTIONS DESCRIPTION
WA4
Pre-drilled
H = 374 mm
W = 204 mm
D = 75 mm
16mm Cable max
1x SP meter
1x Electronic meter or 1x Multiphase meter
1x Service Fuse
1x Neutral bar/link
WA5
Pre-drilled
H = 400 mm
W = 380 mm
D = 83 mm
16mm Cable max
1x Multiphase meter or 1x SP meter
3x Service Fuses
1x Neutral bar/link
WA6
Pre-drilled
H = 590 mm
W = 400 mm
D = 83 mm
16mm Cable max
2x or 1x Multiphase meter
2x SP meter or a combination of above
4x Service Fuses
2x Neutral bars/links

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use
