GE 32A Safeclip Fuse Fittings

Description
• Self cleaning, self aligning base contacts
• Clip-in fuse links, no tools required for fuse replacement
• Full shrouded contacts, IP20 degree of protection
• DIN rail mounting with easy to remove carrier
• Base made from Phenolic, carrier made from thermoplastic

Standards
Australian Standard AS60269 and BS88 Part 6, ASTA, CSA

Range
Rated current (Ie): 32A
Rated voltage (Ue): 550V
Rated peak withstand current: 80kA
Rated impulse withstand voltage (Uimp): 8kV
Screw mounting size (all): M5
Weight 1P (Front wire) 0.1kg
Max Cable Size (front): 16mm2
Maximum tightening torque(front): 1.5-2Nm
Fuse type (suit all): NS_

Rated Current (A)	Type of connection	Colour	Packing Quantity	Catalogue Number

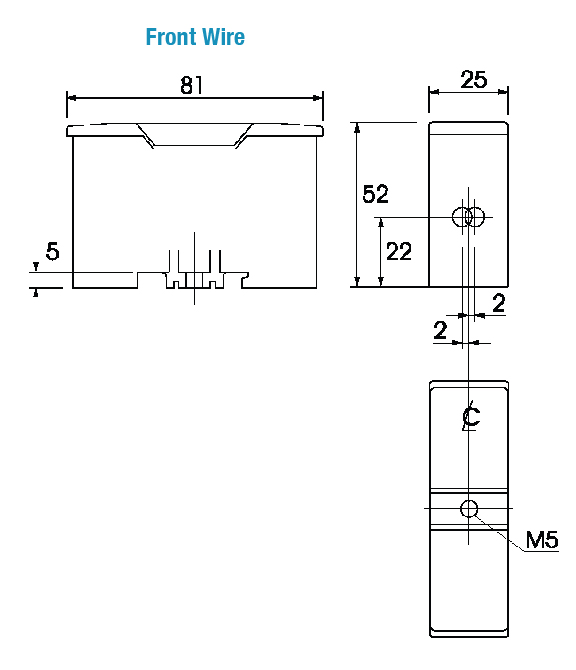

32A	Front Wire Base	Black	10	SC32-D ACT

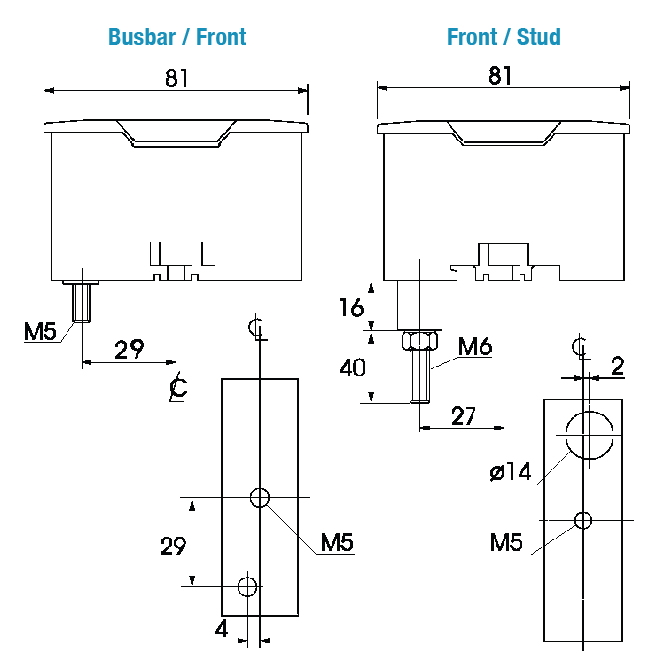

	Busbar / Front wire	Black		SC32BH
	Front wire / 1 stud	Black		SC32PH-D
–	Protection Boot – suit rear stud	Black		RS20/32S

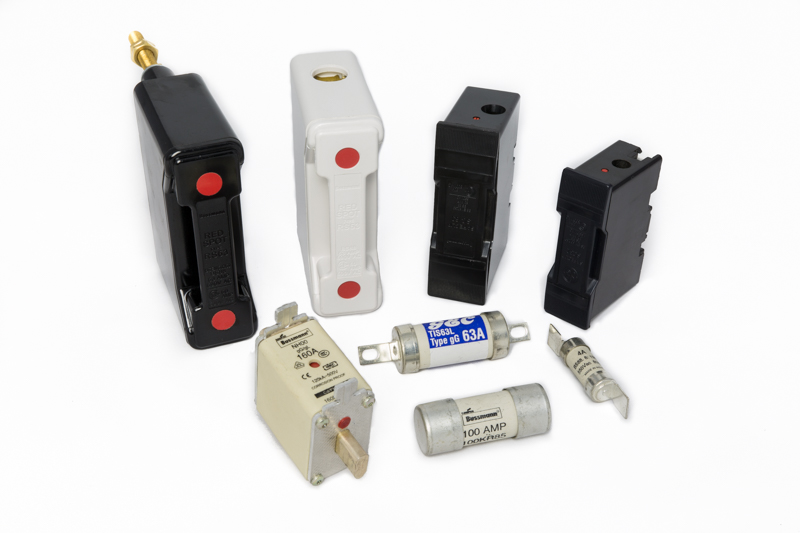

Red Spot Safety Clip

Description
A range of CSA certified IP20 finger-safe fuse holders for BS88 HRC industrial fuses in rating up to 400A.

Features & Benefits

• Industry standard fuse holder for protecting utility and in- dustrial installations for over 40 years
• Large, proven contact system and anti-vibration feature helps ensure perfect carrier contact alignment and superior electrical contact
• Conductor insulating sleeves help prevent inadvertent contact at the entry point while fully shrouded terminals de- liver IP20 protection
• Molded parts made from flame-retardant, non-hygroscopic, high dielectric strength phenolic material
• A broad range of accessories and Bussmann fuses available for all Red Spot fuse holders

Catalog Symbol

RS(AMP)(Connection Style/Color)

Ratings
Volts: Up to 690Vac/dc*
Amps: 20, 32, 63, 100, 200 and 400
SCCR: 80kA
* AC Ratings vary by holder ampacity. See product tables for details.

Maximum Operating Temperature
40°C

Wire Type
70°C PVC/Cu

Wire Range
8AWG to 500MCM (10 to 240mm2)

Termination/Connection Styles
• Front connected (20-400A)
• Back stud connected (20-400A)
• Front/back stud connected (20-400A)
• Back stud connected, flush mounted (20A)

Agency Information
• CSA 22.2 No. 39, Class 6225 01, File 47235
• IEC 60269-1 & IEC 60269-2

Flammability Rating
RS20H to RS63H, V-1
RS100H to RS400H, V-0

Protection Level
IP20

Available Colors
Black, white, green and grey (available colors vary by ampacity)

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use
