VBS Australia is committed to the highest standard of Customer Focus and we have made every effort to maintain the accuracy and completeness of the information provided in this catalogue. Where improvements to our products affect their installation and usage we endeavour to contact any Customers who may be affected.

If you need to rely on our technical data or dimensions in your application, please contact us for further confirmation or detailed dimensional drawings/3D models.

Warranty as stated in VBS Australia Terms and Conditions of Trading is void if any modification is made to the warranted
product.

 Properties
Material Glass Reinforced Polyamide 6.6
Conductor Temp 140°C†
Flammability UL94-VO
Glow Wire 960°C
Equipment Voltage Ue 1000V
Insulation Voltage Ui 1000V
Impulse Voltage Uimp 12kV

† in line with the limits set out in AS/NZS 61439, insulating components in contact with conductors may be required to continuously operate at an average of 140°C (Max 145°C). This range of products meets the requirement, the material for them being assigned thermal class F established using methods similar to IEC60085.

 FAULT LEVELS – INSULATOR SPACING
Conductors  Phase Centres  lcw Rating  Duration  Distance Between Supports
2 x 40 x 10 110 50kA 1 sec 500 mm
2 x 60 x 10 110 50kA 1 sec 500 mm
2 x 80 x 10 110 50kA 1 sec 600 mm
2 x 100 x 10 110 50kA 1 sec 700 mm
3 x 100 x 10 110 50kA 1 sec 700 mm

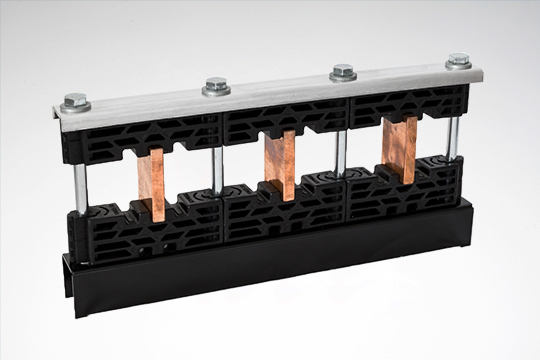

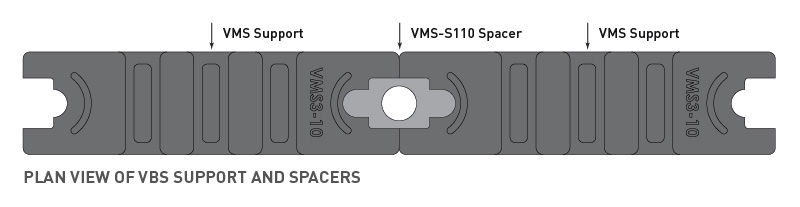

Insulcut-VBS-Busbar-support-1

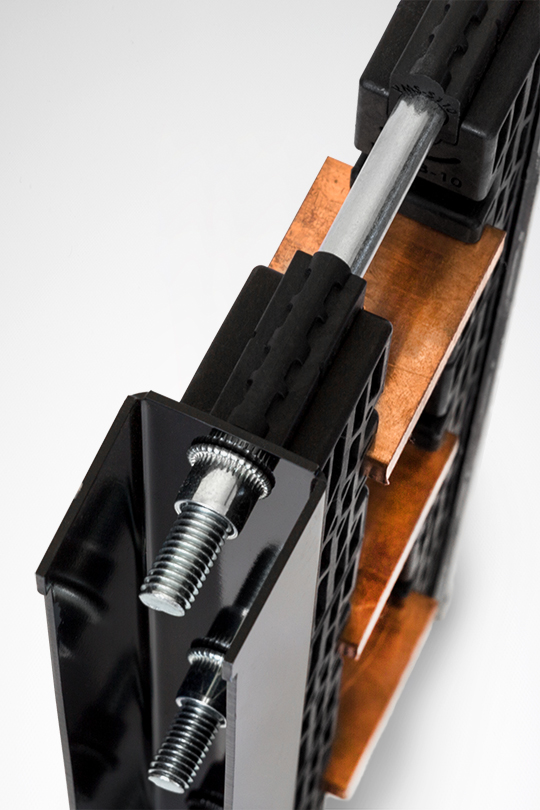

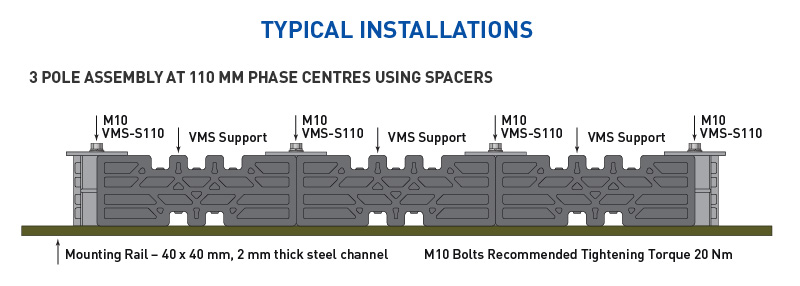

Insulcut-VBS-Busbar-support-2

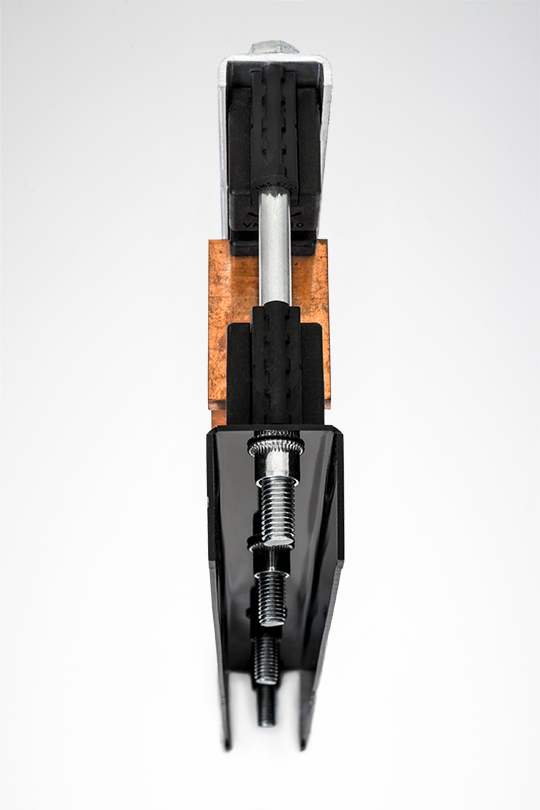

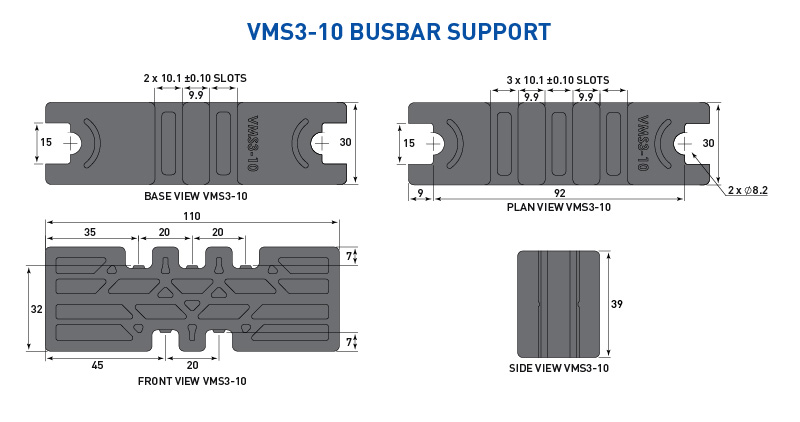

Insulcut-VBS-Busbar-support-3

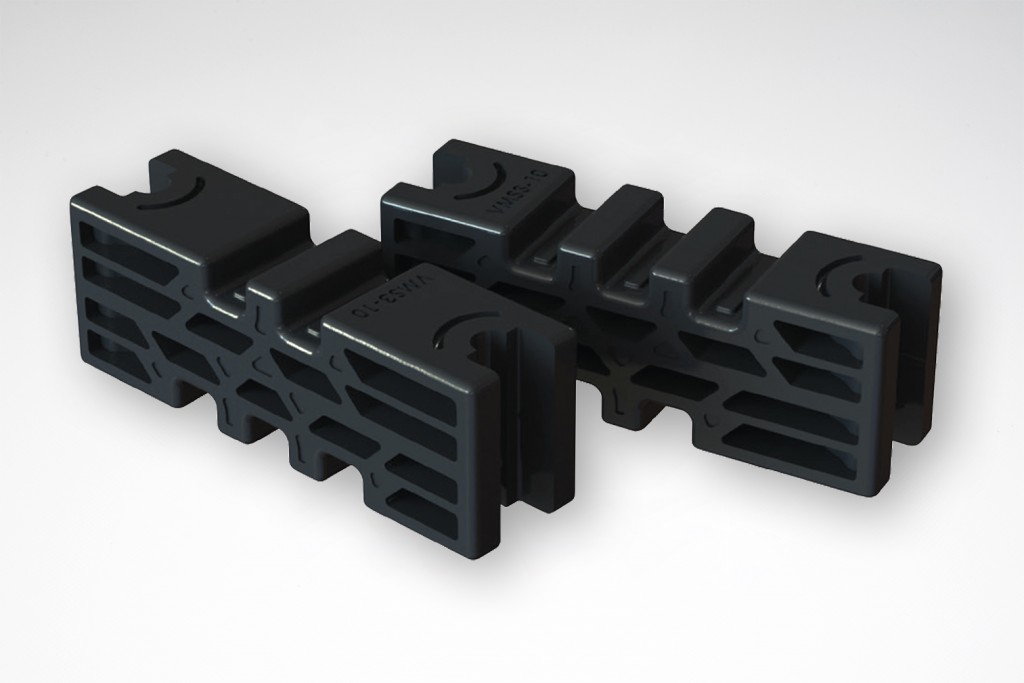

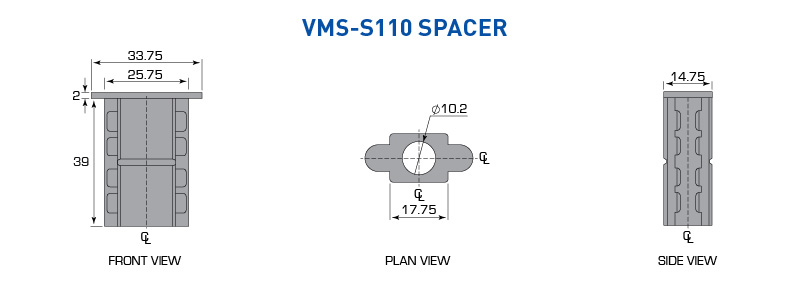

Insulcut-VBS-Busbar-support-4

The information in this data sheets gives general characteristics of the material. Whilst all possible care has been taken to ensure this information is correct the manufacturer cannot accept any liability nor is any liability on the part of the manufacturer or supplier to be implied as a result of the data given as conditions and methods of use are beyond our control. The user must confirm suitability for the application prior to commercial use.
